Deck-O-Drain
Drainage System
Use DECK-O-DRAIN to direct run-off water into lawn,
garden or drainage area.
-
The
DECK-O-DRAIN Drainage System provides an effective drainage system for
concrete pool decks.
-
This
One-Piece type drain Effectively
collects water and carries it away quickly.
-
Made
of tough, long lasting PVC, the
Deck-O-Drain System resists wear and is non-corrosive.
-
Both the deck and sub-grade
receive watertight protection, while the DECK-0-DRAIN also serves as an
effective expansion and contraction joint system.
-
Non-Directional
design eliminates the need for right
or left fittings.
-
Flat
contour profile allows a tight fit against any wall.
-
Installs
Easily. Couplings Snap other fittings together. Each Case has (9) Couplings
included.
-
Note: For each
fitting, you will need 2 couplings. (3 for Tees, 4 for Cross Tees).
-
Important to
purchase at least one (1) Klean-out for every 50 feet, or in areas
needed. Klean-outs have a lid where you can stick a garden hose into the
drain and flush out debris to waste.
-
Be sure to
order All Parts Needed for your installation the 1st Time. "Adding
Parts Later" requires the removal of concrete.
-
Ideal
for use on pool decks, driveways, patios, ...
Any where water collects
& needs to be carried away.
-
Available
Colors: White, Grey, Tan, Redwood, & Black. (Redwood and Black are
special order.)
-
Dimensions: 1 ½" Wide x 3 ¼"
High and 10' Lengths.
|
Part # |
Description |
Price |
Order |
|
DODGreyCS |
Deck-O-Drain, Grey, Case of 100-Ft |
398.00 |
 |
|
DODTanCS |
Deck-O-Drain, Tan, Case of 100-Ft |
398.00 |
|
|
DODWhiteCS |
Deck-O-Drain, White, Case of 100-Ft |
398.00 |
|
|
|
Each Case comes with (9)
Couplings. |
|
|
|

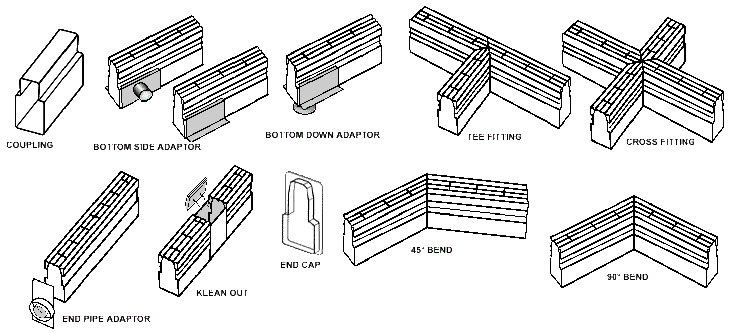

Fittings: |
|
|
|
|
DOD45 |
45 Degree Bend, Deck-O-Drain |
12.50 |
|
|
DOD90 |
90 Degree Bend, Deck-O-Drain |
12.50 |
|
|
DODbda |
Bottom Down Adapter,
Deck-O-Drain |
10.95 |
|
|
DODbsa |
Bottom Side Adapter,
Deck-O-Drain |
10.95 |
|
|
DODcoup |
Coupling, Joins Deck-O-Drain
Together |
2.50 |
|
|
DODcross |
Cross Fitting, Deck-O-Drain |
29.00 |
|
|
DODec |
End Cap, Deck-O-Drain |
10.25 |
|
|
DODepa |
End Pipe Adapter,
Deck-O-Drain |
10.25 |
|
|
DODklean |
Klean-Out Fitting,
Deck-O-Drain |
44.95 |
|
|
DODnd |
Nail Down Fitting |
1.50 |
|
|
DODtee |
Tee Fitting, Deck-O-Drain |
21.00 |
|
(Additional
Freight Charges May Apply. Full Cases must ship via Motor Freight Carrier.
Call 410-252-2079 before ordering for a freight quote.)

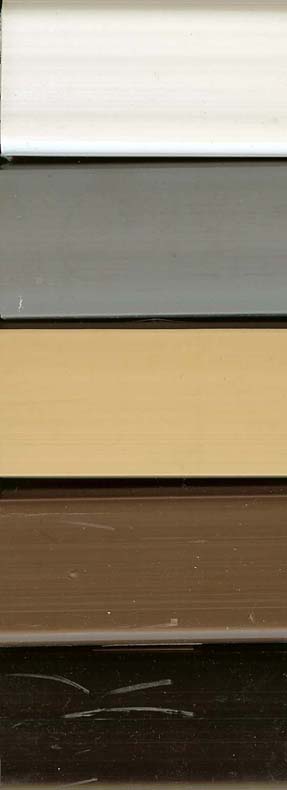

Deck-O-Drain Colors Available: White
or Grey are most common. (Tan, Black, and Redwood
(non-removable tops) are subject to availability, and are considered a Special
Order Item.)
Colors shown on this site may vary slightly
from those of actual products because of characteristics of printing inks.

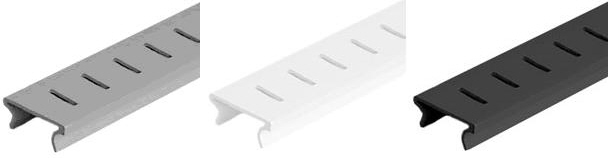

Deck Drain with Removable
