Commercial Aquatic Equipment & Pool and Spa Parts
For Questions, please email to  custserv@aquamasters.com   410-252-2079
The Source of Your Aquatic Equipment, Needs, & Supplies, Pool Parts

Pool Deck Drain with Removable Tops
Finally - An Affordable Plastic Deck Drain System that can be repaired easily!

Heavy-Duty, Durable Plastic Pool Deck Drain has a removable top drain that features a double wall base and a snap in top. When installing this drain, the tops are staggered past the joints making the joints very rigid.  Because Frontier Deck Drain tops are removable, this drain is easy to clean and the tops can be replaced if ever damaged.

The Frontier Deck Drain is an easy to use, very effective, and affordable deck drain that has been used for many years in pool decks, patios and other decorative concrete applications.

• Stable
• Cleanable
• Replaceable

Frontier Deck Drain has a flow rate of 90 gal. per min. per 10 ft. section. This drain is available in 5 colors.   All fittings are available.

• Provides an effective drainage system for concrete pool decks. Ideal for Anywhere water collects and Needs to be carried away.

• Made of tough, long lasting PVC, Non-corrosive.

• This Two-Piece type drain system (Base + Top Cap) and Effectively collects water and carries it away quickly.


• Sold in Full Case Lots of 80-FT  (Eight (8) 10' Lengths), OR To Save on Shipping - Now Available in 40' Cases = Eight (8) 5' Lengths.

• Each case has equal number of bases and Equal Number of Top Caps.   Replacement Deck Drain Tops available for this drain only

• Advantages: Make Easy Repairs or Change Colors for a New Look


• Note: For each fitting, you will need 2 couplings.  (90's and 45's require 2-couplings.    Tee's require 3-couplings,   Cross Tee's require 4 couplings.)

• No "Clean-outs" needed.  If you want to clean a section out, simply lift the removable top and snap it back into place.

• Non-Directional design eliminates the need for right or left fittings.

• Flat contour profile allows a tight fit against any wall.

• Installs Easily.  Couplings Snap other fittings together.

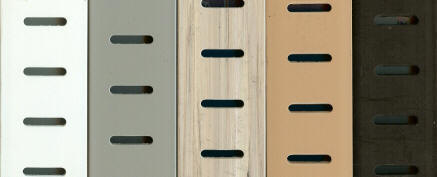

• Available Colors: Listed below in order from top to bottom:   White, Grey, Marble, Tan, Black.  (Marble and Black are special order and may require an additional lead time.)  These are scans of samples of the actual product.   Colors are approximate and are intended to be true; however some colors can be seen differently due to human error and computer settings.  Previously installed colors may look differently from age and the elements.)
  Colors:

       White               Grey             Marble            Tan               Black


• You are able to change colors over time to give the pool a different look.  Top Caps Only

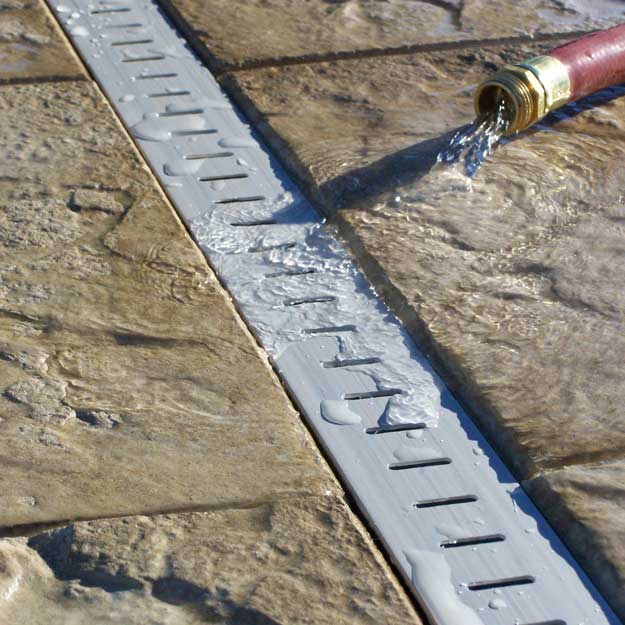

  Note:  These top caps Only fit this drain.  If the pool deck drain that you has a black or grey base like the one pictured below, then these tops will likely work.
  However, if your existing drain is a "one-piece" system, these tops will not fit the one-piece drains.

For New Installations, It is recommended that you drill and pin (3/8" rebar) the base at 3 foot intervals to stabilize against any movement in the concrete slab.


This product is a removable top drain that features a double wall base and a snap in top. When installing this drain the tops are staggered past the joints making the joints very rigid. Because Frontier Deck Drain tops are removable this drain is easy to clean and the Frontier Deck Drain Tops Caps can be replaced if ever damaged. It is recommended that you drill and pin (3/8" rebar) the base at 3 foot intervals to stabilize against any movement in the concrete slab.

• Dimensions:

•     Width @ Top:      1-3/4" Wide @ Top  (Top Cap Width)

•     Width @ Middle:  1-7/8" Wide at Middle (Widest Part).

•     Width @ Bottom: 1-13/16" Wide @ Bottom ( Just over 1-3/4" @ Bottom)

•     Height (without Top):  3-1/4" High from Top to Bottom.

•     Overall Height (WITH Top):    3-1/2" Tall  (With Top Included.)

  Full range of Deck Drain Fittings available.   Specify Which Color When Ordering.

	Full-Cases = Product comes in 10' Sections.  Must be shipped via Tractor Trailer (Typical for Larger Orders.)
Part #	Description	Price	Order	Availability
SDDWhite-80	Pool Deck Drain with Removable Tops, White, Case of 80 Linear Feet	595.00		Full Case, 10' Sections
SDDGrey-80	Pool Deck Drain with Removable Tops, Grey, Case of 80 Linear Feet	595.00		Full Case, 10' Sections
SDDTan-80	Pool Deck Drain with Removable Tops, Tan, Case of 80 Linear Feet	595.00		Full Case, 10' Sections
SDDMarble-80	Pool Deck Drain with Removable Tops, Marble Color, 80 Linear Feet Case	595.00		Full Case, 10' Sections
SDDBlack-80	Pool Deck Drain with Removable Tops, Black Color, 80 Linear Feet Case	595.00		Full Case, 10' Sections
	In order to help save on shipping costs, We are now offering "half-cases" (shorter lengths) for those who may not need an entire 80' case.  Half-Cases = Product Cut into 5' Sections so that it can be shipped via UPS Ground / FedEx, etc.
Part #	Description	Price	Order	Availability
SDDW-40	Pool Deck Drain with Removable Tops, White, Half Case of 40 Feet, (8 x 5-Ft Lengths)	349.00		1/2 Case, 5' Sections
SDDG-40	Pool Deck Drain with Removable Tops, Grey, Half Case of 40 Feet, (8 x 5-Ft Lengths)	349.00		1/2 Case, 5' Sections
SDDT-40	Pool Deck Drain with Removable Tops, Tan, Half Case of 40 Feet, (8 x 5-Ft Lengths)	349.00		1/2 Case, 5' Sections
SDDM-40	Pool Deck Drain with Removable Tops, Marble Color, Half Case of 40 Feet, (8 x 5-Ft Lengths)	349.00		1/2 Case, 5' Sections
SDDB-40	Pool Deck Drain with Removable Tops, Black Color, Half Case of 40 Feet, (8 x 5-Ft Lengths)	349.00		1/2 Case, 5' Sections
		Price	Order	Image
Fittings:	Specify Which Color when Ordering!
SDD45	45 Degree Bend for Removable Top Drain	17.95
SDD90	90 Degree Bend for Removable Top Drain	17.95
SDD-DA	Bottom Down Adapter for Removable Top Drain	21.95
SDD-SA	Side Adapter for Removable Top Drain	21.95
SDDcup	Coupling, Joins Removable Top Drain Together	3.00
SDD-X	Cross Fitting for Removable Top Drain	41.75
SDDEP	End Plug for Removable Top Drain	10.25
SDDEA	End Adapter for Removable Top Drain	17.49
SDDTee	Tee Fitting, for Removable Top Drain	29.25

Additional Freight Charges May Apply.  Full Cases of 80' = Eight (8) x 10' Sections - Must ship via Motor Freight Carrier. (Not via UPS)  Call 410-252-2079 before ordering for a freight quote.)

In order to help save on shipping costs, We are now offering "half-cases" (shorter lengths) for those who may not need an entire 80' case.

Colors shown on this site may vary slightly from those of actual products because of characteristics of printing inks.

Swimming Pool Deck Equipment

Replacement Tops Caps Only (White, Grey, or Tan) - For Removable Top Deck Drain

3" Commercial Deck Drains

4-3/4" Commercial Pool Deck Drains

Paver Deck Drains

Mini-Paver Drain

Back to Aquamasters USA Swimming Pool Catalog



All Deck Drains must ship via Common Carrier, and are sold by the case.  Deck Drains are special order items.

Orders must be Pre-Paid by major credit card: Visa, MasterCard, Discover, Certified Check, Money Order, or Check in Advance.   Aquamasters, Inc. reserves the right to require a certified check in lieu of credit card for certain items.  All Sales are Final.  No returns on special order items.   For returns of Stocking Items, an RGA (Return Goods Authorization) Number is required.  There will be a 25% Restocking Fee on Product Only.  We cannot refund shipping costs.
Shipping: Most Items can ship UPS.  Orders over 150-Lbs (combined)  or items that are too large to ship UPS will be sent via (Motor Freight Carrier) at an additional expense.  Some items less than 150-lbs must be shipped via Motor Freight because of "dimensional weight."  Questions about Shipping, Email us at custserv@aquamasters.com for Freight Quote. We need City, State, & zip code.   Hours are  9am - 5pm Eastern Time (EST).  You can Order On-Line or Call (410) 252-2079.
Not Shipping Overseas at this time.   Minimum Order $50.00.  Orders under $50 may be subject to an additional handling fee.  Prices, Product Specifications, and Appearances may be subject to change without notice.  Copyright 2014  Aquamasters, Inc.    Last Updated April 2015.  Prices are in US Dollars & are Subject to Change without Notice.  Emailed Quotes are good for 30 days unless otherwise specified.    Aquamasters Home Page
Disclaimer: The information contained herein is included for illustrative purposes only, and to the best of our knowledge, is accurate and reliable.  Aquamasters, Inc) cannot however under any circumstances make any guarantee of results or assume any obligation or liability in connection with the use of this information.  As Aquamasters, Inc. has no control over the use to which others may put its product, it is recommended that the products be tested to determine if suitable for specific application and/or our information is valid in a particular circumstance.  Responsibility remains with the architect or engineer, contractor and owner for the design, application and proper installation of each product.  Specifier and user shall determine the suitability of products for specific application and assume all responsibilities in connection therewith.
