Cast Iron Basket Strainers - Flanged Connections
 Cast Iron BFC125J with Quick Release Cover
(For Replacement Baskets, Scroll Below Strainers)

Features
125# ANSI Flanged basket strainers in Cast Iron are available with bolted or quick release clamped cover. Clamp cover units (Model BFC) are ideally suited for applications where frequent clean-out of the basket is expected. Having a spare, clean basket on hand will greatly reduce the cleaning time, and differential pressure gauges, with alarms, can be supplied to get the maximum on-stream time between cleaning cycles.

Construction
Body & Cover, ASTM SPEC A126, Class B
Baskets are Stainless Steel

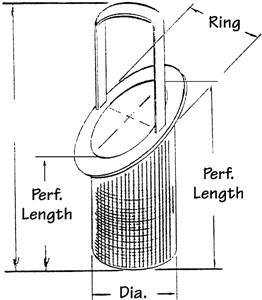

Standard Screens for Baskets


Size

Std.

Opening

2" - 3"

3/64" perf

0.045"

4" - 20"

1/8" perf

0.125"

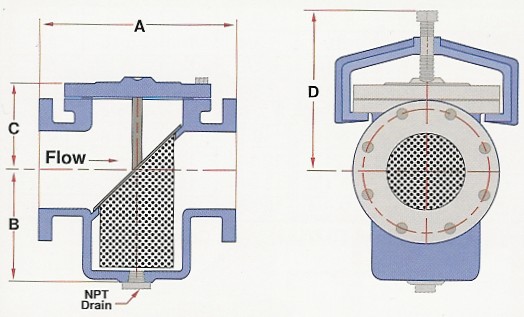

Dimensional Data



Size

A

B

C

D

Blow-Off
NPT

Clear-
ance
For
Bskt
Removal

Shipping
Weight
(lbs)

Inches

Prefix

2

0200

8 1/8

5

3 3/4

7 1/2

3/4

5 3/8

34

2 1/2

0250

8 1/4

5 3/8

4 5/16

8

3/4

6 5/16

43

3

0300

9 7/8

6 1/2

4

8

3/4

8

60

4

0400

11 1/2

8

6 9/16

10 1/2

1

9 5/16

120

5

0500

13 1/8

8

7

11 1/2

1

10 1/4

140

6

0600

14 7/8

8 5/8

6 5/8

12

1

11 1/8

164

8

0800

18 11/16

11 3/4

9

15

1

15 9/16

330

10

1000

20 1/8

13 3/4

10 1/2

15

1

18

470

12

1200

26 1/4

16 3/8

13 1/8

17 1/2

1

23 1/4

820

14

1400

30 1/4

22 3/8

14 1/2

—

2

26 1/4

1300

16

1600

33 1/8

23 5/8

15 9/16

—

2

28 1/8

1600

18

1800

38 3/8

28 3/8

16

—

2

33 3/8

2260

20

2000

41 1/2

32 3/8

17 3/8

—

2

37 3/8

2980

Pressure Ratings:

  • Cast iron: Maximum of 50 PSI
  • Bronze: 150 lb ANSI
  • Cast steel: 150 lb, 300 lb, & 600 lb ANSI
  • Stainless steel: 150 lb, 300 lb, & 600 lb ANSI
  • Alloy 20: 150 lb ANSI

Service Recommendations:
Used to strain dirt particles from fluid in pipe lines and provide inexpensive protection for costly pumps, meters, valves, turbines, compressors, etc.

Construction:
All sizes feature an NPT blow-off connection and angle design stainless steel cylindrical baskets. All have a bolted or clamped cover with gasket for ease of basket removal.

The Strainer, when ordered Complete, includes One (1) Stainless Steel Basket.

Part #

Description

Price

Order

HLStrain2CI

2" In-Line Hair & Lint Strainer, Cast Iron

 495.00

HLStrain25CI

2.5" In-Line Hair & Lint Strainer, Cast Iron

 599.00

HLStrain3CI

3" In-Line Hair & Lint Strainer, Cast Iron

 659.00

HLStrain4CI

4" In-Line Hair & Lint Strainer, Cast Iron

 855.00

HLStrain6CI

6" In-Line Hair & Lint Strainer, Cast Iron

 1,539.00

HLStrain8CI

8" In-Line Hair & Lint Strainer, Cast Iron

 2,379.00
  (Larger Sizes Are Available.)

Additional Baskets (Replacements)

Part #

Description

Price

Order

HLBask2

Basket, Stainless Steel Mesh, for 2" Strainer

 159.00

HLBask25

Basket, Stainless Steel Mesh, for 2.5" Strainer

 169.00

HLBask3

Basket, Stainless Steel Mesh, for 3" Strainer

 229.00

HLBask4

Basket, Stainless Steel Mesh, for 4" Strainer

 289.00

HLBask6

Basket, Stainless Steel Mesh, for 6" Strainer

489.00

HLBask8

Basket, Stainless Steel Mesh, for 8" Strainer

 629.00

Flanges & Flange Gaskets

Flanges

Part #

Description

Price

Order

Flng2

2" Flange, Socket, Schedule 80

 29.00

Flng3

3" Flange, Socket, Schedule 80

 32.75

Flng4

4" Flange, Socket, Schedule 80

 39.00

Flng6

6" Flange, Socket, Schedule 80

 49.00

Flng8

8" Flange, Socket, Schedule 80

 65.00

Flange Gaskets

Part #

Description

Price

Order

FlngGas2

2" Flange Gasket, 1/8" Full Face Neoprene

 11.25

FlngGas3

3" Flange Gasket, 1/8" Full Face Neoprene

 16.25

FlngGas4

4" Flange Gasket, 1/8" Full Face Neoprene

 16.25

FlngGas6

6" Flange Gasket, 1/8" Full Face Neoprene

 21.75

FlngGas8

8" Flange Gasket, 1/8" Full Face Neoprene

 23.95

Flange Bolts

Part #

Description

Price

Order

FBKit58x512

Flange Bolt Kit (4 per kit) 5/8 x 5 1/2 inch

 18.00

FBKit34x6

Flange Bolt Kit (8 per kit) 3/4 x 6 inch

 25.00



Strainers are not able to ship via UPS.  Must ship by Motor Freight Carrier.
