Purex C-Series Commercial Pool Pump Parts

Aquamasters, Inc. carries a complete line of pool and spa parts.  Our Pump Parts diagram shows the strainer basket, pump lid assembly, hand knobs, wet end, gaskets, O-Rings, Housing, impeller, diffuser, shaft seal, seal plate, impeller key, and replacement motor from the Pentair (formerly Purex) C-Series Commercial Pool Pump.

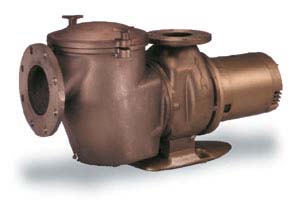

 Parts for the Pentair Purex C-Series Commercial Pool Pump

Key # Part # Product Description Price Wgt Image Purchase
1 PF-075280 Hand nut assembly, Bronze, Fits Purex C-Series Pump 126.30 10
1A PF-072747 C series pot assembly, (a) 3219.09 200
2 PF-075275 Cover, C16 - bronze 597.34 25
3 PF-071433 O-ring, C-18 13.02 4
4 PF-071551 Plug pipe 1/4 in. bronze 10.36 4
5 PF-075271 Strainer Pot mach. bronze 2951.04 120
6 PF-072795 Basket, C-29 s/s 11 in.,  OEM 296.91 10
6 PF-072795A Basket, for Purex C-Series Strainer Pot, Generic 255.43 10
7 PF-075273 Volute, C-2 bronze 3160.31 120
8 PF-070943 Gasket flange P-135-5 in. 26.60 6
9 PF-071683 Screw 3/4-10 x 1.75 hh. brs. P-12 26.62 2
10 PF-075287 Foot, C-4 coated 73.08 10 No Image
11 PF-071688 Screw 5/8-11 x 1 stl. hh. 1.40 2
12 PF-071037 Impeller, C-35 lock screw 6.22 2
13 PF-071048 Impeller washer, C-71 13.40 5
14 PF-075713 Impeller washer gasket 9.60 2
15 PF-073828 Impeller, CH-50/CHK-50/ CHKL-50, 5HP, 1PH, 3PH, high hd. 979.00 15
15 PF-070228 Impeller, CM-50/CMK-50/ CMKL-50, 5HP, 1PH, 3PH, med. hd. 979.00 15
15 PF-073829 Impeller, CH-75/CHK-75/ CHKL-75, 7.5HP, 1PH, 3PH, high hd. 979.00 15
15 PF-070227 Impeller, CM-75/CMK-75/ CMKL-75, 7.5HP, 1PH, 3PH, med. hd. 979.00 15
15 PF-073830 Impeller, CH-100/CHK-100/ CHKL-100,10HP, 1PH, 3PH, high hd. 979.00 15
15 PF-070226 Impeller, CM-100/CMK-100/CMKL-100,10HP, 1PH, 3PH, med hd. 979.00 15
15 PF-073831 Impeller, CHK-150/CHKL-150,15HP, 3PH, high hd. 989.00 15
15 PF-070225 Impeller, CMK-150/CMKL-150,15HP, 3PH, med hd. 989.00 15
15 PF-073832 Impeller, CHK-200/CHKL-200, 20HP, 3PH, high hd. 989.00 15
16 PF-071725S Shaft Seal Assembly, C-7, PS-360 45.84 5
17 PF-070906 Flange, mach.- C-52 brass 489.68 15
18 PF-071423 O-ring, C-70 10.32 3
19 PF-071681 Screw 3/8-16 3/4 in.CS hh. 3.25 3
20 PF-072185 Water slinger, C-115 18.36 3
21 PF-071046 Impeller key 3/16 in. 33.52 3
22 PF-071687 Screw 1/2 - 13 x 1.25 stl. hh. 14.30 3

    Replacement Motors for the Purex C-Series Pump
23 PF-357205 Motor 5HP, 1PH, 200/208v 2,629.75 150
23 PF-071366 Motor 5HP, 1PH, 230v 2,675.83 150
23 PF-357206 Motor 5HP, 3PH, 200/208v 2,112.06 150
23 PF-071364 Motor 5HP, 3PH, 220/440v 2,148.97 150
23 PF-357207 Motor 7.5HP, 1PH, 200/208v 2,876.10 150
23 PF-357204 Motor 7.5HP, 1PH, 230v 2,275.56 150
23 PF-357208 Motor 7.5HP, 3PH, 200/208v 2,312.76 150
23 PF-071365S Motor 7.5HP, 3PH, 220/440v 2,548.49 150
23 PF-357247 Motor 7.5HP, 3PH, 575v 2,312.76 150
23 PF-357209 Motor 10HP, 3PH, 200/208v 3,326.66 150
23 PF-071363 Motor 10HP, 3PH, 220/440v 3,243.39 150
23 PF-357238 Motor 10HP, 3PH, 575v 3,219.35 150
23 PF-357210 Motor 15HP, 3PH, 200/208v Call 150
23 PF-071361 Motor 15HP, 3PH, 220/440v 3,484.47 150
23 PF-357245 Motor 15HP, 3PH, 575v 3,708.53 150
23 PF-357211 Motor 20HP, 3PH, 200/208v Call 150
23 PF-071362 Motor 20HP, 3PH, 220/440v 5,998.12 150

    Motor Sub Assemblies
  PF-73262 Motor sub assembly, CMK-50 (b) 4,557.61 150
  PF-73265 Motor sub assembly, CHK-50 (b) 4,674.47 150
  PF-73263 Motor sub assembly, CMK-75 (b) 4,678.87 150
  PF-73266 Motor sub assembly, CHK-75 (b) 4,799.02 150
  PF-73680 Motor sub assembly, CMK- 100 (b) 6,006.65 150
  PF-73261 Motor sub assembly, CMK-150 (b) 6,335.02 150
  PF-73268 Motor sub assembly, CHK-150 (b) 6,618.77 150
  PF-73269 Motor sub assembly, CHK-200 (b) 9,446.84 150
        150
  PF-357910 Motor sub assembly, CH-75, 1PH,230v (c) 4,186.79 150
  PF-357930 Motor sub assembly, CM-75, 1PH,200v (c) 4,186.79 150
  PF-357935 Motor sub assembly, CH-75, 1PH,200v (c) 4,186.79 150
  PF-357250 Motor sub assembly, CH-100, 10HP, 1PH, 230v Call 150
  PF-357251 Motor sub assembly, CM-100, 1PH,230v Call 150

  PF-14700 Motor sub assembly, CMKL -50 380/415v (d) Call 150
  PF-14801 Motor sub assembly, CHKL -50 380/415v (d) 4,514.21 150
  PF-14701 Motor sub assembly, CMKL-75 380/415v (d) 4,634.33 150
  PF-14802 Motor sub assembly, CHKL-75 380/415v (d) 4,634.33 150
  PF-14702 Motor sub assembly, CMKL-100 (d) 5,950.54 150
  PF-14803 Motor sub assembly, CHKL-100 (d) 5,950.54 150
  PF-14703 Motor sub assembly, CMKL-150 (d) 6,555.71 200
  PF-14804 Motor sub assembly, CHKL-150 (d) 6,555.71 200
  PF-14805 Motor sub assembly, CHKL - 200 (d) 9,356.89 200



Notes:
