Water Flowmeters & Flow Gauges
Flowmeters
(GPM & LPM)
Our line of flow
meters that measure both
gallons per minute (GPM) and liters per minute (LPM) are of the highest quality, and
available to you at an affordable price! Very Accurate and easy to install.
Constructed of a durable machine acrylic body,
corrosion & wear resistant float, and a permanent screen-printed scale. Simply drill
the hole into the pipe, and install it with a gasket and 2 clamps. Also available in
low-flow ranges. Indicate size of pipe when ordering.
Meter Type: Variable Area
Pipe Type: Schedule 40 PVC Pipe
Calibration: Water
Scale: Permanent silk screen (dual scale)
Description: Standard flow range
Notes: For horizontal pipe mounting.
Type: Standard
Float Material: #316 SS
Body Material: Machined Acrylic
Mounting: Saddle
Accuracy: ±10%
Temperature: 150 Deg F/65 Deg C @ 0 pressure
Pressure: 150 psig/10.3 Bar @ 70 Deg F/21 Deg C
Maximum Pressure Drop: 0 psi
Flow Range: See Chart
Below |
|
Normal Range Flowmeters
|
Part # |
Description |
Price |
Order |
|
Flow150 |
Flowmeter, 1.5-inch Pipe, 20-100 GPM, 75-375
LPM |
89.00 |
 |
|
Flow200
|
Flowmeter, 2-inch Pipe, 40-150
GPM, 150-550 LPM |
95.00 |
|
|
Flow250
|
Flowmeter, 2.5-inch Pipe, 60-240
GPM, 250-900 LPM |
119.00 |
|
|
Flow300
|
Flowmeter, 3-inch Pipe, 80-300
GPM, 300-1125 LPM |
129.00 |
|
|
Flow400
|
Flowmeter, 4-inch Pipe, 125-500
GPM, 500-2000 LPM |
139.00 |
|
|
Flow600
|
Flowmeter, 6-inch Pipe, 250-1050
GPM, 900-3900 LPM |
195.00 |
|
|
Flow800
|
Flowmeter, 8-inch Pipe, 5000-1900
GPM, 1800-7200 LPM |
215.00 |
|
Low-Flow Range Flow
meters
|
Part # |
Description |
Price |
Order |
|
FlowLF1 |
1" Low-Flow Flow
Meter, 2-10
GPM |
95.00 |
|
|
FlowLF15 |
1.5"
Low-Flow Flow Meter,
8-30 GPM, 30-130 LPM |
99.00 |
|
|
FlowLF2 |
2"
Low-Flow Flow Meter,
15-70 GPM, 60-260 LPM |
105.00 |
|
|
FlowLF3 |
3"
Low-Flow Flow Meter,
40-140 GPM, 160-520 LPM |
135.00 |
|
|
Vertical Mounted Normal Range Flowmeters
These vertical-mounted flowmeters were designed accommodate the job where there is a
minimum amount of room. Constructed of a durable machine acrylic body, corrosion &
wear resistant float, and a permanent screen-printed scale. Ideal for when you need a
Flowmeter in a "tight spot."
Meter Type: Variable Area
Pipe Type: Sch 40 PVC Pipe
Calibration: Water
Scale: Permanent silk screen (dual scale)
Description: Standard flow range
Notes: For vertical pipe mounting. Downward or
Upward Flow.
Type: Standard
Float Material: #316 SS
Body Material: Machined Acrylic
Mounting: Saddle
Accuracy: ±10%
Temperature: 150 Deg F/65 Deg C @ 0 pressure
Pressure: 150 psig/10.3 Bar @ 70 Deg F/21 Deg C
Maximum Pressure Drop: 0 psi
Flow Range: See Chart
Below
|
|
|
Part # |
Description |
Price |
Order |
|

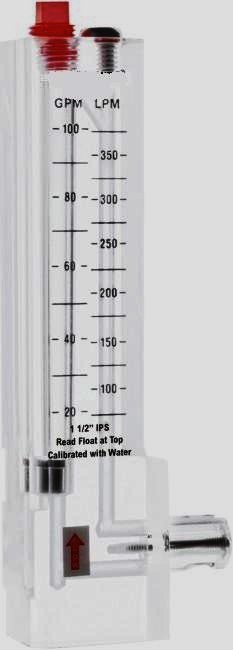

FlowVMU15 |
1.5" Flowmeter, Vertical Mount, 20-100 GPM,
75-375 LPM, Upwards |
119.00 |
|
|
FlowVMD15 |
1.5" Flowmeter, Vertical Mount, 20-100 GPM,
75-375 LPM,
Downwards |
119.00 |
|
|
|
|
|
|
|
FlowVMU20 |
2"
Flowmeter, Vertical Mount, 40-150
GPM, 150-550 LPM,
Upwards |
129.00 |
|
|
FlowVMD20 |
2"
Flowmeter, Vertical Mount, 40-150
GPM, 150-550 LPM,
Downwards |
129.00 |
|
